| Measuring Length | 1000 mm |
| Measuring Range | 5 mm (±2.5 mm) |
| Measuring Time | ~ 4 Seconds |
| Number of Transducers | 100 |
| Resolution | ±12.5 μm |
| Memory Capacity | > 25,000 Measurements |
| Measuring Points | Running surface, sides14 mm below running surface and corners |
| Smart Phone OS | Android |
| Dimensions: |
|
| Length x Width x Height | ~1160 mm x 95 mm x 160 mm |
| Weight | < 5 Kg |

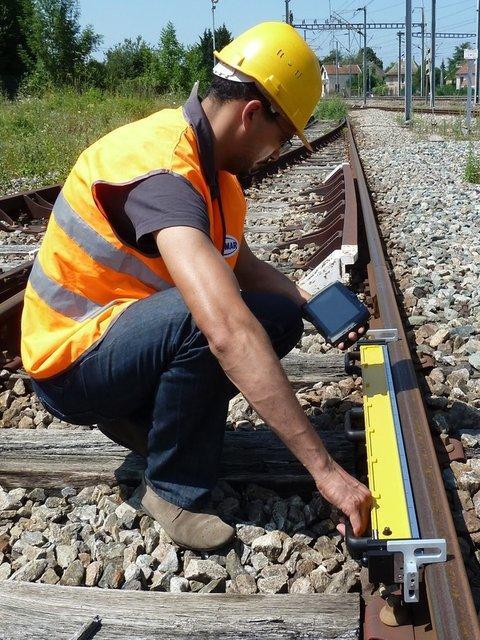

Digital Rail Straightness Measuring & Recording Device
- Check the straightness of Rail Head, Running Surface, Sides, and corners.
- Accurate measurement for parallelism and perpendicularity of welds, corrugation, rail end sections
- Ergonomic use thanks to joystick and two control buttons on its frame, even with gloves
- Bluetooth technology to easily transfer the Measured data to a PC for later analysis.
- GPS-enabled rugged Android smartphone to display data and stored on the device.
- Two magnetic pins allowing you to perfectly position the unit on the rail allowing the 100 sensors (over a 1-meter base) to provide accurate measurements at the push of a button
- Well protected from electromagnetic perturbations (EN50121/4 standard) and robust structure
