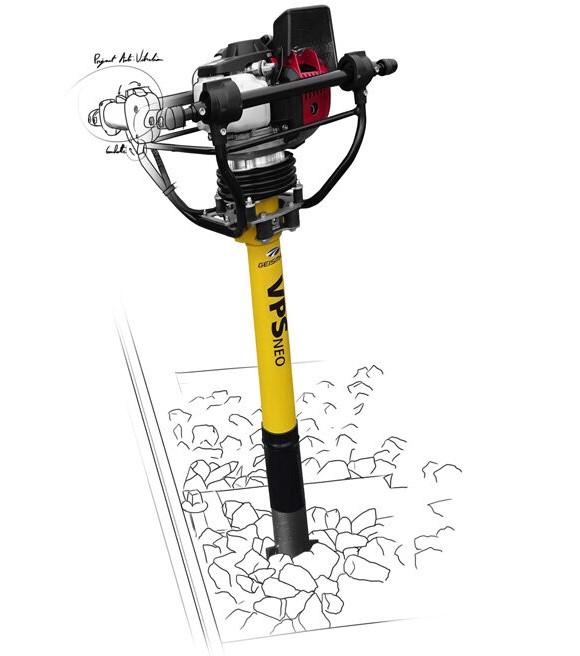

OFF-TRACK TAMPER (ENGINE MOUNTED)
Tamping Machines Item Code: TI-VPSNEO-ST160A06
UOM : Nos
HAND HELD ENGINE MOUNTED PORTABLE BALLAST TAMPER
- WITH HONDA GX50 4 STROKE 1.47 kW ENGINE
- ENGINE AIR AND EXHAUST DEFLECTOR
- 3 LEVELS VIBRATION DAMPING
- HOUR AND TACHOMETER
- CARRYING BAG
| Engine | HONDA |
| Engine Power | 2 hp (1.47 kW) |
| Vibration frequency inside the ballast | 125 Hz |
| Hand/arm vibration level | 4.9 m/s² |
| Dimensions | None |
| Length x Width x Height | 525mm x 390mm x 1151mm |
| Weight | 19.9 Kg |
Light Weight Self Contained Off Track Tamper - Engine Mounted

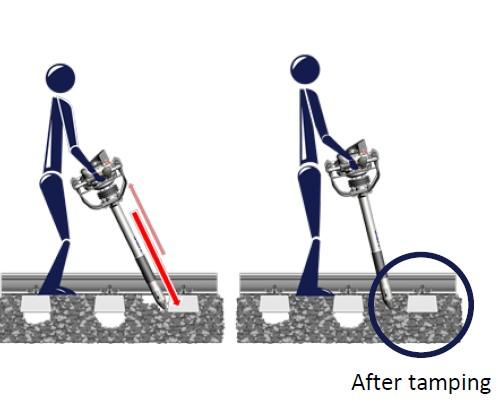

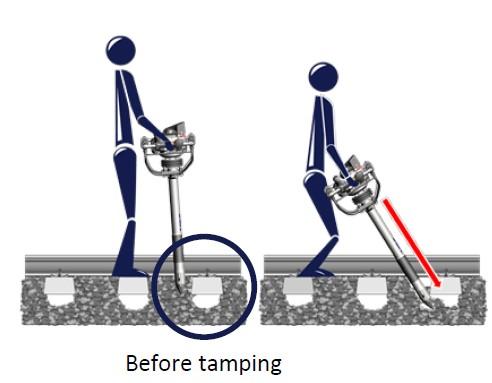

- Efficient local tamping of the track
- Track component (sleeper and ballast) are protected; vibrations can’t damage the track.
- The ergonomic vibration damping handles bring comfort to personnel
- Simplified use with a single command
- Hot air from the engine is deviated away from the user by a patented Geismar deflector
| Sr. No. | Document Name | Download |
|---|---|---|
| 1 | Technical Specifications |  |
| 2 | Operations & Maintenance Manual | |
